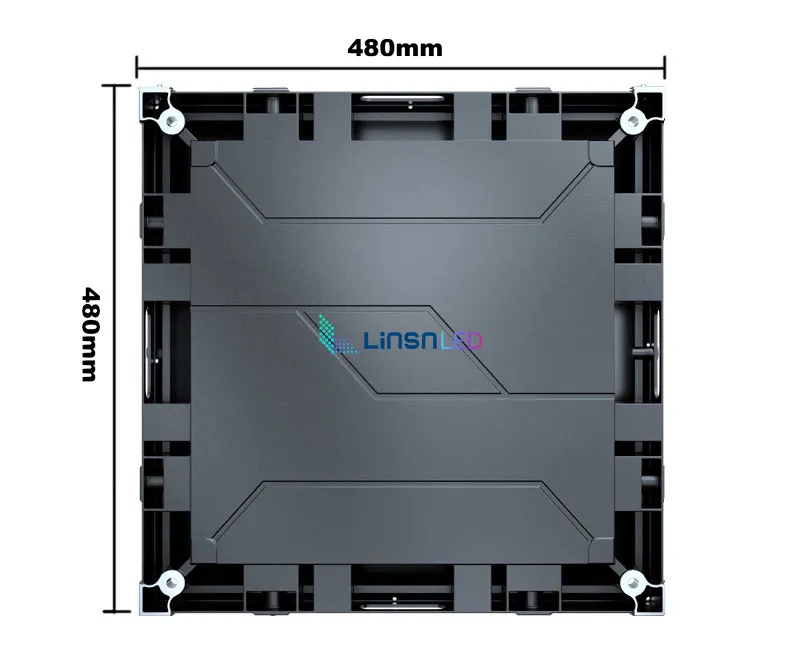

480*480mm ebatında 1:1 oran tasarımı olarak tasarlanmıştır. Ultra hafif ve ultra ince özelliğiyle mükemmel dolap tasarımı.

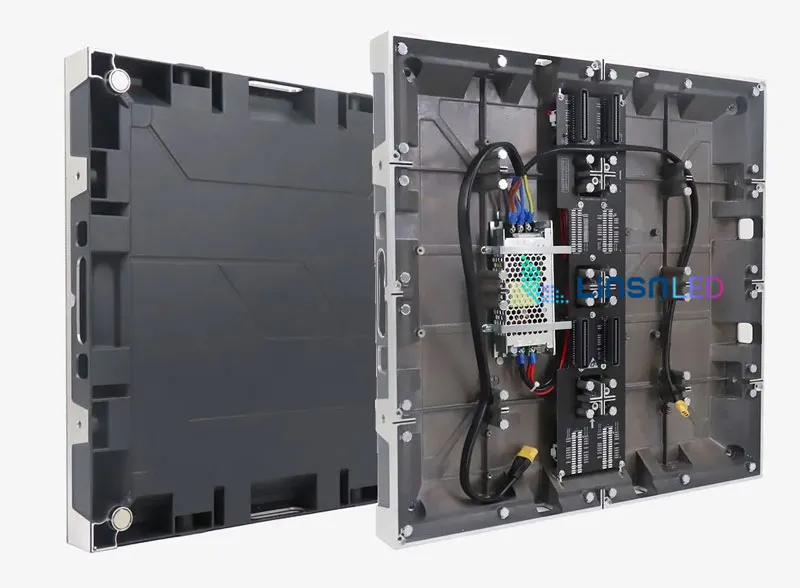

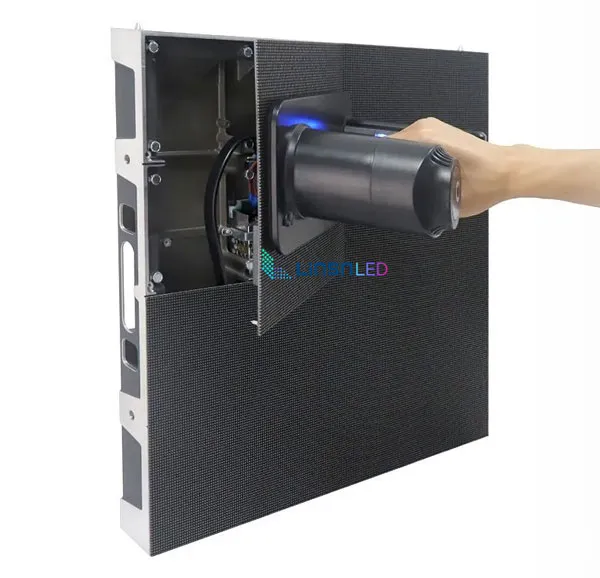

LED alıcı kartları, HUB Kartları, güç kaynakları ve LED modülleri için ön servis tasarımı. Güç kaynağı ve sinyalin çift yedekleme işlevi.
Güzel görünüm ve insan düzeniyle mükemmel dolap tasarımı,
hızlı kurulum ve bakım, harika görsel deneyimle göze hoş geliyor.
| Pixel pitch | 1.875mm | 2mm | 2.5mm | 3mm |
|---|---|---|---|---|
| Pixels per cabinet | 256×256 (HxV) | 240×240 (HxV) | 192×192 (HxV) | 160×160 (HxV) |
| LED lifetime | 100,000h (video – 50% brightness) | 100,000h (video – 50% brightness) | 100,000h (video – 50% brightness) | 100,000h (video – 50% brightness) |
| Brightness | 800 – 1000 nits | 800 – 1000 nits | 800 – 1000 nits | 800 – 1000 nits |
| Module size | 240*240mm | 240*240mm | 240*240mm | 240*240mm |
| Module resolution | 128*128dots | 120*120dots | 96*96dots | 80*80dots |
| Refresh rate | 1920-3,840Hz | 1920-3,840Hz | 1920-3,840Hz | 1920-3,840Hz |
| Hor. viewing angle | 140° +/-5° (@50% brightness) | 140° +/-5° (@50% brightness) | 140° +/-5° (@50% brightness) | 140° +/-5° (@50% brightness) |
| Vert. viewing angle | 140° +/-5° (@50% brightness) | 140° +/-5° (@50% brightness) | 140° +/-5° (@50% brightness) | 140° +/-5° (@50% brightness) |
| Brightness uniformity | >98% | >98% | >98% | >98% |
| Dimming | 0-100% | 0-100% | 0-100% | 0-100% |
| Grey Level | 14bits | 14bits | 14bits | 14bits |
| Avg Power consumption | 350 W/m² | 320 W/m² | 300 W/m² | 280 W/m² |
| Max Power consumption | 680 W/m² | 640 W/m² | 620 W/m² | 600 W/m² |
| Operation power voltage | 100-240V/50-60Hz | 100-240V/50-60Hz | 100-240V/50-60Hz | 100-240V/50-60Hz |
| Operational temperature | -10°C to +40°C/14°F to 104°F | -10°C to +40°C/14°F to 104°F | -10°C to +40°C/14°F to 104°F | -10°C to +40°C/14°F to 104°F |
| Operational humidity | 10-80% | 10-80% | 10-80% | 10-80% |
| IP rating | IP50 for Indoor | IP50 for Indoor | IP50 for Indoor | IP50 for Indoor |
| Dimensions | 480 x 480 x 80 mm (WxHxD) | 480 x 480 x 80 mm (WxHxD) | 480 x 480 x 80 mm (WxHxD) | 480 x 480 x 80 mm (WxHxD) |
| Weight | 5.5 kg | 5.5 kg | 5.5 kg | 5.5 kg |
| Serviceability | Front and back service | Front and back service | Front and back service | Front and back service |
| Certifications | CE, UL, FCC class A, RoHS, WEE, REACH | CE, UL, FCC class A, RoHS, WEE, REACH | CE, UL, FCC class A, RoHS, WEE, REACH | CE, UL, FCC class A, RoHS, WEE, REACH |
