Kolay bakım ve kurulum tasarımı size maliyet ve zamandan tasarruf sağlar. Çift hizmet mevcuttur.
| Remove | Time |
| Front service for module | 20 seconds |
| Back service for module | 23 seconds |
| HUB card (back maintenance) | 78 seconds |
| Power supply (back maintenance) | 70 seconds |
| Power box(front maintenance) | 200 seconds |

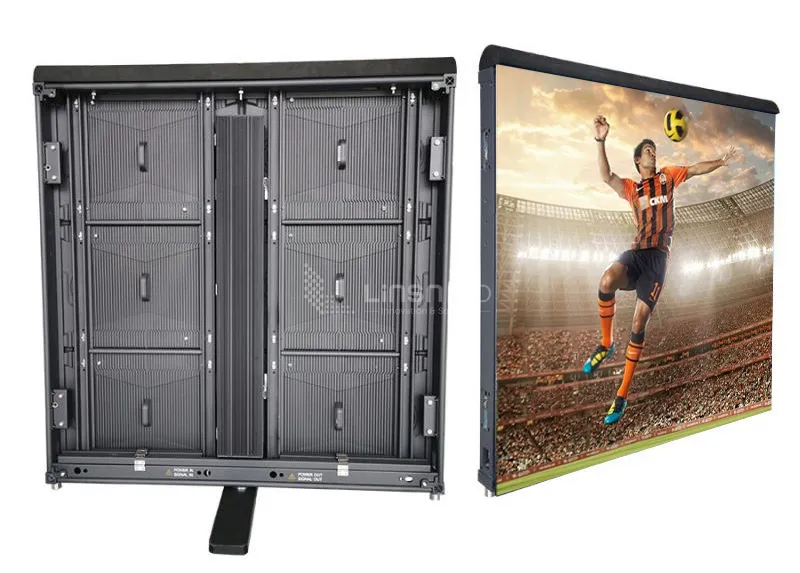

EV960 enerji tasarruflu LED ekran, panel için alüminyum şasi tasarımını benimser. Alüminyum şasi, vidalama tasarımı olmadan kenar kilidi benimser. Dahili bileşenlerini korumak için tamamen kapalı tasarım.
| Aluminum Chasis | Plastic Property | |
| Heat Conductivity | 237/MK | 0.02-0.04 MK |
| Melting Point: | 660 W℃ | 170 W℃ |
| Strong Capacity: | 390-420MPA | 30-50MPA |
| Recycle Ratio: | 85% | 1% |
| Model name | P6.67 | P8 | P10 |
| Pixel Pitch (mm) | 6.67 | 8 | 10 |
| Pixel Density (dot/m2) | 22500 | 15625 | 10000 |
| LED sealing Type | SMD2727 | SMD3535 | SMD3535 |
| Module Size (mm * mm) | 480*320 | 480*320 | 480*320 |
| Module Resolution (PX* PX) | 72*48 | 60*40 | 48*32 |
| Brightness (cd/m2) | 6000 | 6500 | 6500 |
| Grey Scale（bit） | ≥14 | ≥14 | ≥14 |
| Refresh Rate (Hz) | 3840 | 3840 | 3840 |
| Maximum Cabinet Power Consumption (W) | 550 | 550 | 550 |
| Average Cabinet Power Consumption (W) | 150 | 150 | 150 |
| Cabinet Size (mm * mm) | 960*960 | 960*960 | 960*960 |
| Cabinet Weight (Kg) | 28KG | 28KG | 28KG |
| Cabinet Thickness(mm) | 75 | 75 | 75 |
| Horizontal Viewing Angle (Deg) | 160 | ||
| Vertical Viewing Angle (Deg) | 140 | ||
| Input Voltage (V) | 110-220V/200-240V | ||
| Working Temperature (℃) | -20~ +40 | ||
| Working humidity（RH） | 10%~90% | ||
| Storage temperature range | -40~ +80 | ||
| Operation humidity (RH): | 10%~90% | ||
| Waterproof Level | IP66 | ||
| working life | 50000H | ||
| Working Environment: | Outdoor | ||
| Installation Method | Fixed Installation | ||
Özelsan Elektronik’in P1.20 mm indoor LED ekranı, yüksek piksel yoğunluğu sayesinde her detayı yakalar; yakından izlemenin bile keyfini çıkarırsınız. Modüler yapısı ve akıllı bakım tasarımıyla hızlı ve pratik kurulum sunar. Modern mekânlara uygun şık dizaynı, üstün görüntü netliği ve profesyonel performansı bir araya getirerek markanızı ışığın merkezine taşır.
Teknik dokümanı indirebilirsiniz
